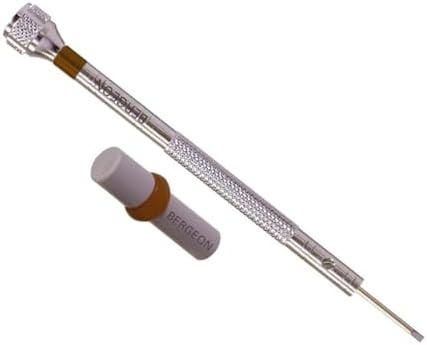

Watchmaker Screwdrivers with Spare Blades 3.00mm
Replacement 3 mm screwdriver blades ground to fit the matching 30080 handle when a working tip becomes dull or damaged.
$29.00
Prices are as the listing last showed them.
| Reference | 30080-L |
|---|---|
| Reference line | 30080 |
| Drawer | Screwdrivers & Blades |
| Working width | 3 mm |
| What it is | A spare part for a tool you already have |
| Bench job | Working on the movement |
A worn screwdriver blade will climb out of a screw slot and mar the head. We grind the 30080-L replacement blade to 3 mm so you can swap out tired steel without replacing the entire tool body. It secures directly into the collet of the matching handle.
The ground profile
We shape the flat sides of the 3 mm tip parallel so it bears across the full depth of the slot. A tapered edge wedges upward under turning force, but parallel flats seat firmly against the walls.
Replacing the tip
Loosen the set screw on the side of the 30080 screwdriver ferrule to slide out the old blade. Insert this replacement until it bottoms out against the stop, then tighten the grub screw back down.
Working size identification
The 3 mm sizing matches the brown identification ring on our handle system. Keeping the proper replacement ready means you do not have to dress down an oversized blade on an India stone mid-assembly.
Storage at the bench
Keep spare blades dry inside their tube or within the center well of the rotating stand. Moisture ruins a ground edge quickly, and bare tips should not knock against other loose steel in a bench drawer.
